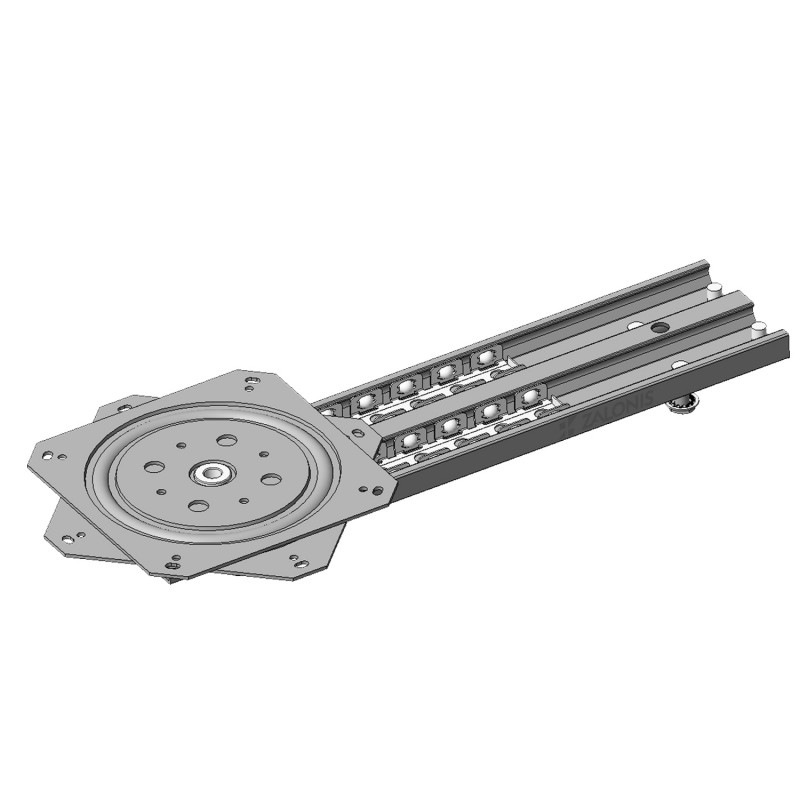

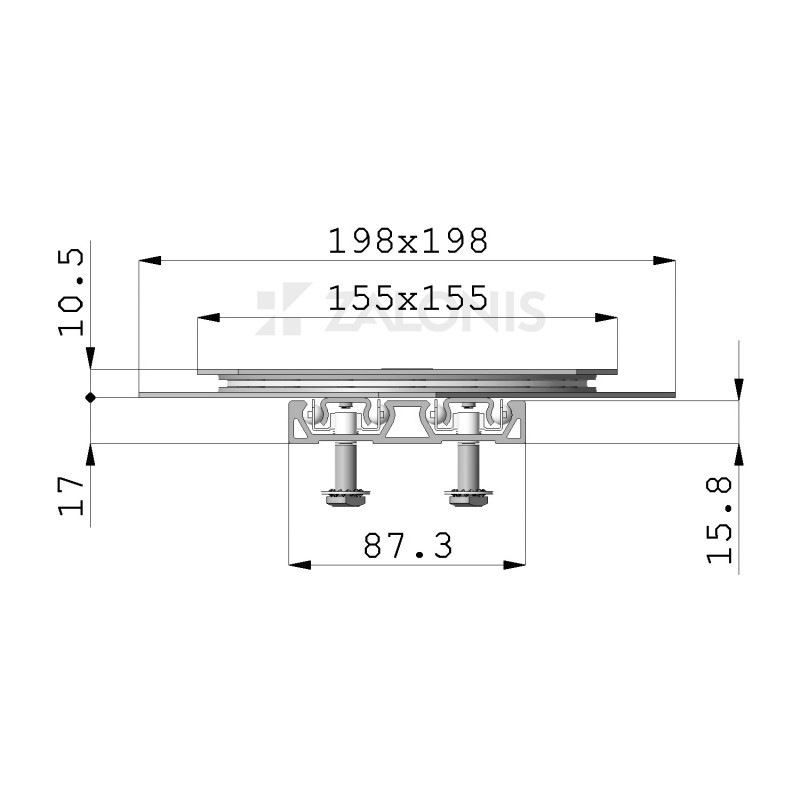

MECHANISM FOR SLIDING AND ROTATING SURFACES /155x155x11 / 90mm

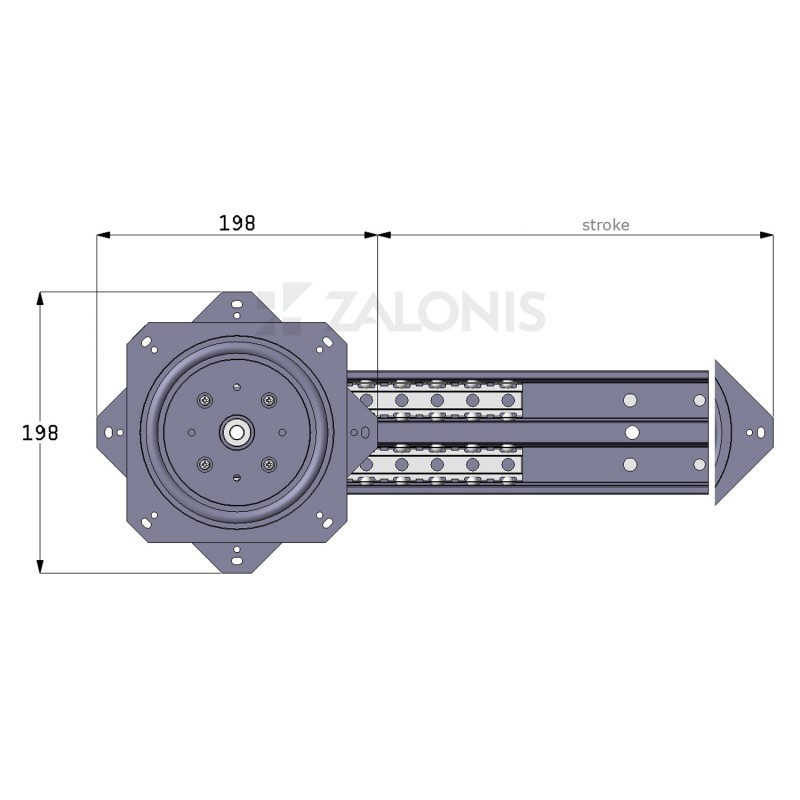

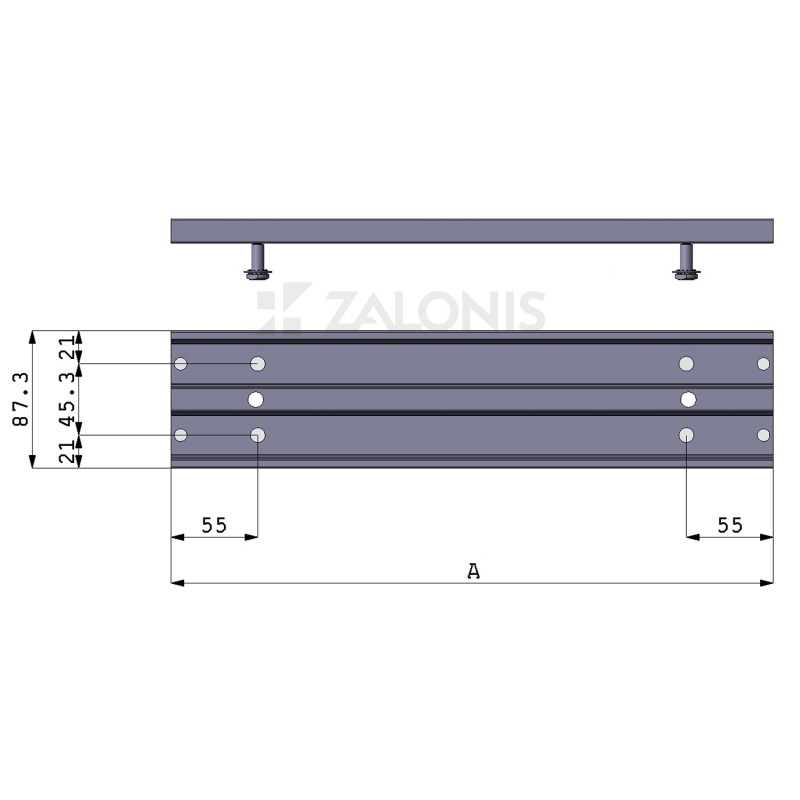

Mechanism with roto-translatory motion to allow one of two overlapping surfaces to slide and rotate avoiding the functional limits resulting from being positioned in a corner or against the wall. Suitable for home or work environment with the aim to create space where there is none and to add functionality. The versatility of use of this product is a perfect tool in the hands of designers and engineers, key players to approving new technical or design solutions. The mechanism, made of anodized aluminium and steel, for a perfect operation requires that the rotating table is supported by legs or by any other support component. Runner length A=38.6 cm. Stroke 27.9cm. Maximum load capacity kg 120 equally distributed. Sliding and rotations with calibrated steel balls. 270° rotation.

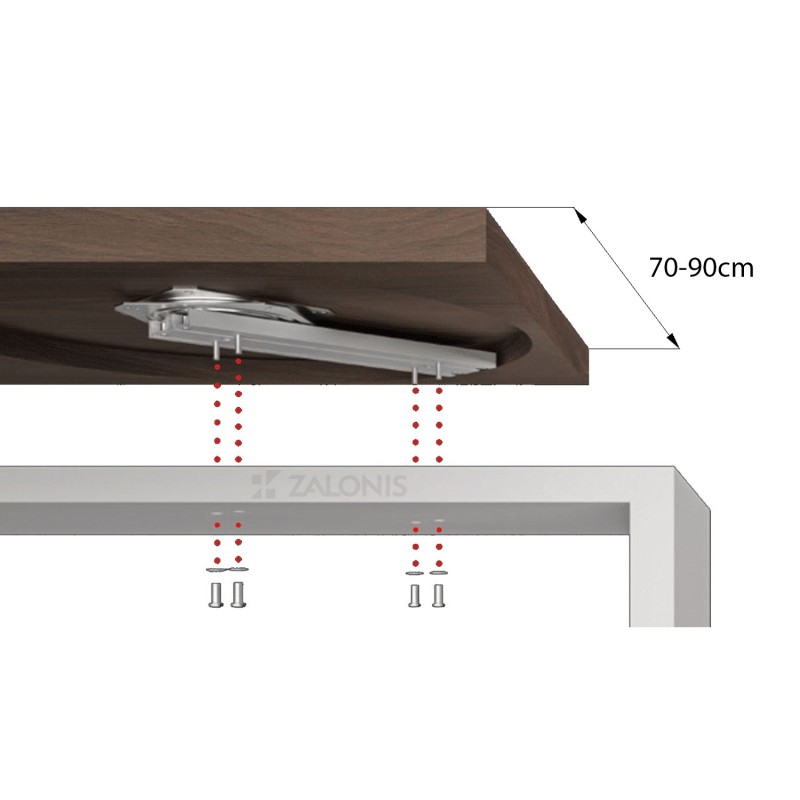

Installation guide:
