D.35 EMKW CABINET HINGE INOX 304 / SOFT CLOSE / HALF OVERLAY / 2D

D.35 EMKW CABINET HINGE INOX 304 / SOFT CLOSE / HALF OVERLAY / 2D

In stock
72 hours saltwater spray resistance test
30.000 open-close test
Code: 1132697
Weight: 0.09kg

Based on 0 reviews. - Write a review

Hole diameter 35 mm

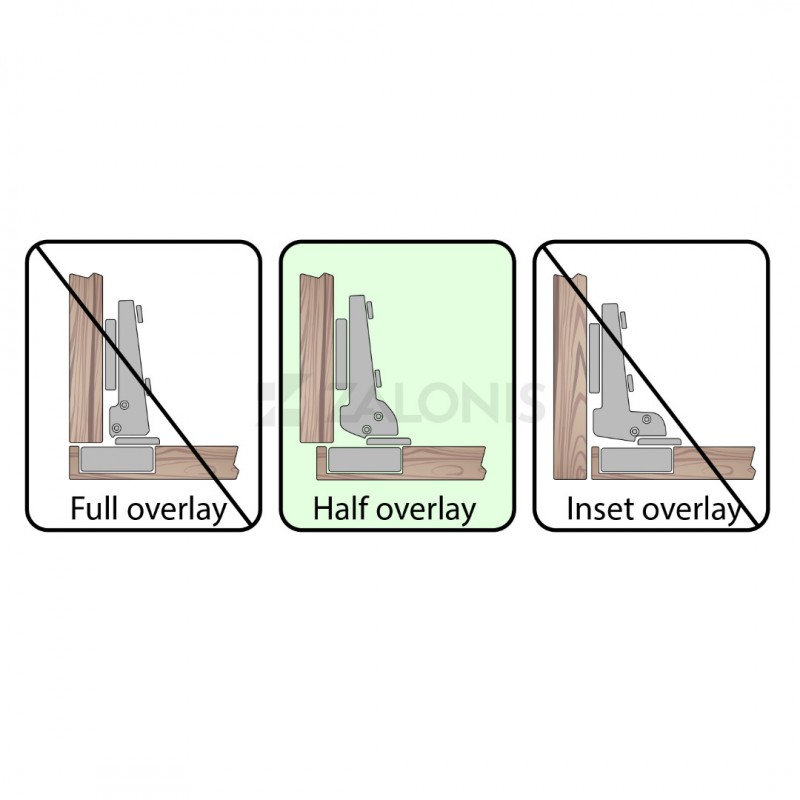

Half overlay 8 mm

Inox 304

Clip-on

5.40€

Ex Tax: 4.35€

Available Options

Product Packing

1 Piece

100 Pieces

Qty

Add to Cart

Description

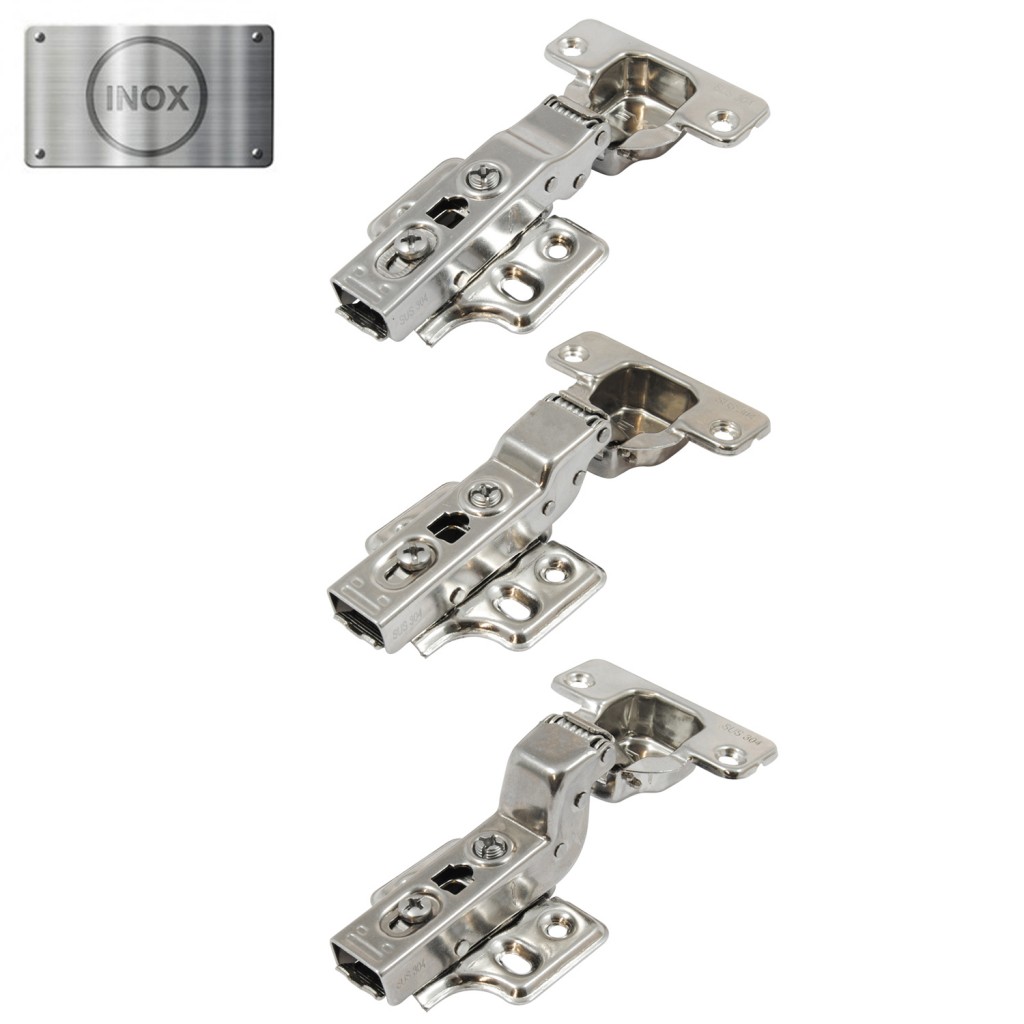

Inox cabinet clip-on hinge for D.35 mm hole. Half overlay 8 mm. With soft closing mechanism and 2 auto adjustments for placement.Inox 304 material, glossy inox finish. The built-in concealed soft-closing mechanism makes cabinet close gently and quietly avoiding possible damage to the furniture. It has a certificate for 35.516 blinks, with corrosion resistance of at least 72 hours according to the salt spray test.

Technical specifications:

-Hole diameter: 35 mm
-Hole depth: 11.3 mm
-Screw centers: 48 mm
-Sheet thickness: 14-23 mm
-Up-down adjustment: ±2 mm
-In-out adjustment: ±2 mm
-Left-right adjustment: +5 mm

10.000 Products in stock

Physical Store

Wholesale (B2B)

If you are a professional looking for the best prices and immediate availability sign up NOW

Specifications

01. General
01.1100 Product Type	SPRING HINGE
01.1200 Product Subtype	HALF OVERLAY EUROPEAN HINGE
01.1300 Version	FOR WOODEN TOP
02. Material
02.1100 Material	STAINLESS STEEL
02.1200 Material Specification	INOX 304
02.1400 Finishing	GLOSSY INOX
05. Installation
05.1500 Hole dimension (mm)	35
05.1900 Adjustable	2D FIXING
25. Hinge
25.1300 Overlay (mm)	8
25.1500 Opening Angle	105 DEGREES
